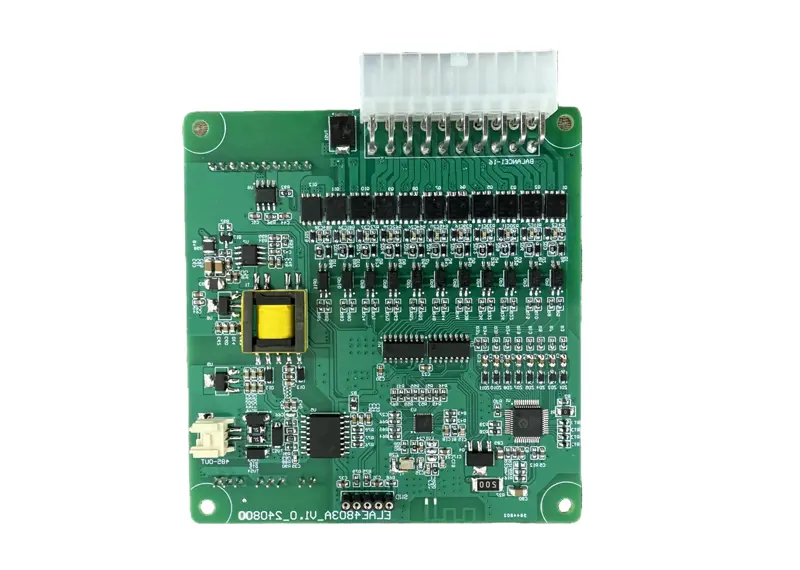

ELAE4803A is a standalone active balancing board. Can cooperate with a 16s battery pack to achieve active balancing of the battery. The board can be installed inside the battery pack or deployed separately outside the battery pack.
Compared with passive balancing, active balancing can quickly achieve battery balance, effectively improving battery life and user experience.
For 16s battery cells
Balancing current 3A
Default intergrates BlueTooth，easy to monitoring and parameters setting.
| ELAE4803A V1.0 Specification | |
| Strings | 16s |
| Active Balancing Current | 3A |
| Current Limiting | Yes, 10A (active or passive mode) |
| Working Mode | Charging/Discharging/Standby |
| Communication | RS485(backup) |
| Inverter Protocol | Compatible for more than 40 protocols |
| Bluetooth | Default |
| Dimensions | 100mm*95mm |
