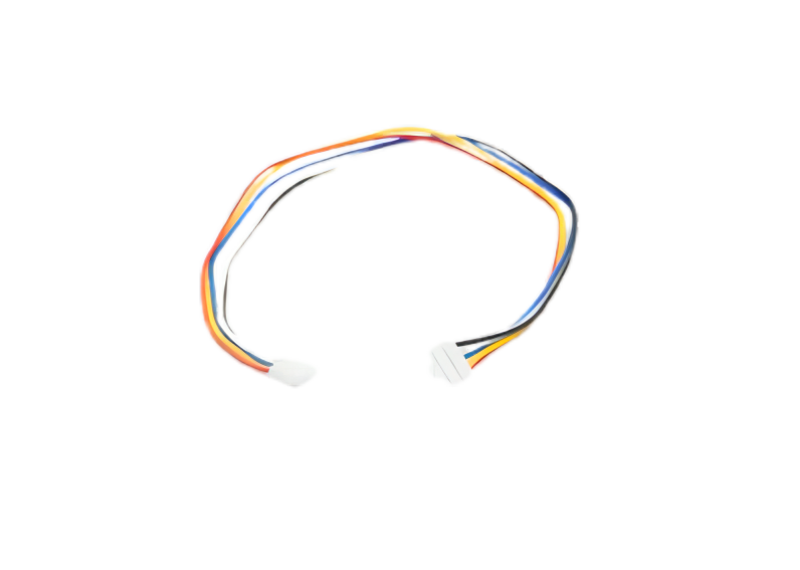

HD Transmission: 5Pin shielded cable for 1080p@60Hz signals (LCD003/004 protocol), <0.1ms latency.
Compact Build: 300mm lightweight (35g) design for AGV dashboard rotation wiring.
Applications: Forklift displays, energy storage HMI interfaces.
| Model | 5P-300mm-5P |
| Length | 300mm |
| Wire Gauge | 24AWG |
| Certification | UL1007, RoHS |
| Temp. Range | -20℃~85℃ |
| Resistance | ≤0.03Ω/m (per pin) |
| Current Rating | 0.5A (signal) |
| Connector | 5P FFC dual-row |
| Flame Rating | HB |
