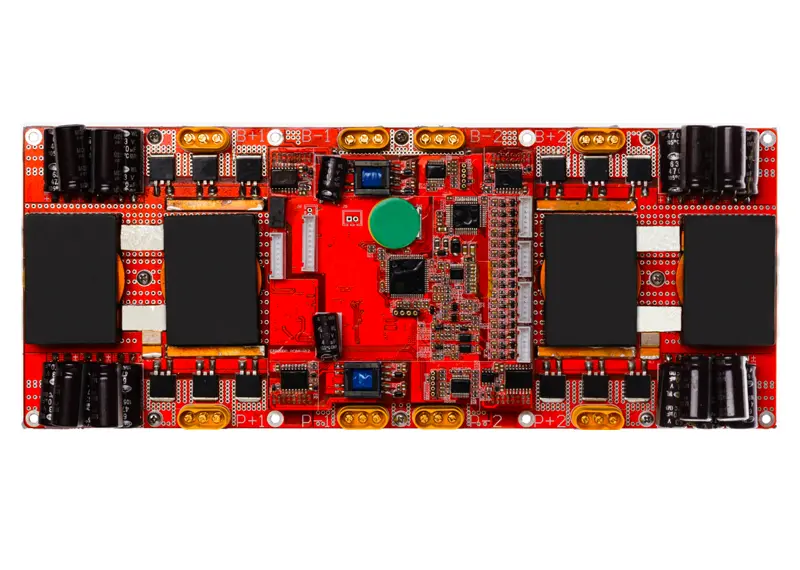

EMU2000 BMS is the Gen1 SMART BMS for telecom backup and home storage scenario. The BMS intergrates a DC-DC module. It brings dynamic adjustment of current and voltage, and realize functions such as mixed use of new and old batteries and lead-acid/lithium batteries.
Now the Gen2 SMART BMS is under developing.
Intelligent lithium battery is a new type of lithium battery product.
It can solve problems such as the inability to mix traditional lithium batteries with lead-acid batteries or mix old and new lithium batteries.
The BMS of intelligent lithium batteries integrates a bidirectional DC-DC module that can adjust the output voltage and current according to the output power and priority, achieving true intelligent control of different types of battery mixing scenarios.
Dynamic adjustment of output voltage
Dynamic adjustment of output current
Support mixed use of new and old batteries
Support mixed use of lead-acid and lithium batteries
Support adjustment of charging and discharging strategies
EMU2000 Specification | |
Topology | Positive protection design |
Strings | 7~16s (15/16 string compatible) |
Current | 100A |
Current Limiting | 0A~100A |
Integrated DC-DC | Yes |
Lithium Acid Mixed Use | Yes |
New/Old BAT Mixed Use | Yes |
Reverse Connection Protection | Yes |
Equalization | Yes, passive (charging and standby) |
Communication | RS485+CAN for inverter RS485 for internal parallel connection |
Address Assignment | Automatic |
Power Consumption | <10uA (sleep mode) |
Heating | 200W |
Display | 4.3' LCD |
Dimensions | 300mm*120mm |
