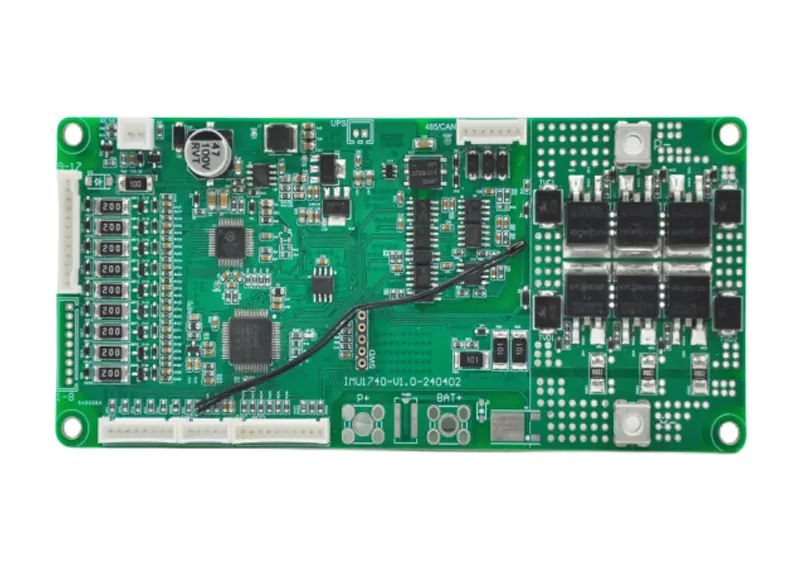

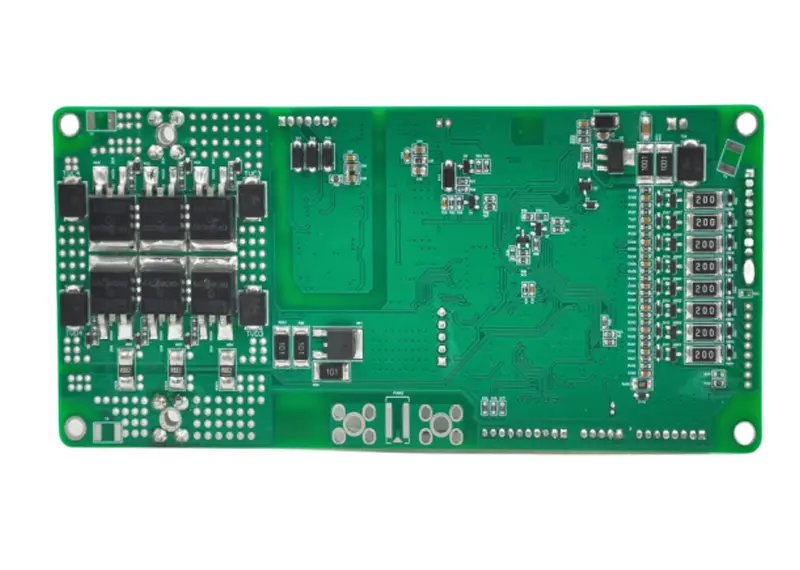

EMU1740 BMS is suitable for 8s~17s lithium battery cell series applications, mainly used for industrial applications, with continuous current of 20A~50A. The types of battery cells can be adapted to LFP/NCM/LTO, etc.
Supports max 17 strings, suitable for niche applications
Small current, small size, fully meet the installation and application of small AGVs, robots, etc.
Support automatic address allocation, enabling rapid deployment in parallel scenarios
| IMU1740 V1.0 Specification | |
| Topology | Negative protection design |
| Strings | 8~17s |
| Current | 20A / 30A / 40A / 50A |
| Current Limiting | No |
| Equalization | Yes, passive (charging and standby) |
| Communication | RS485+CAN for inverter RS485 for internal parallel connection |
| Integrated Secondary Trip | Yes |
| Address Assignment | Automatic |
| Power Consumption | ＜10uA (sleep mode) |
| Heating | No |
| Display | 2.7' LCD |
| Bluetooth | Yes |
| Dimensions | 161mm*71mm |
